SKU: LQ065T9DR51U

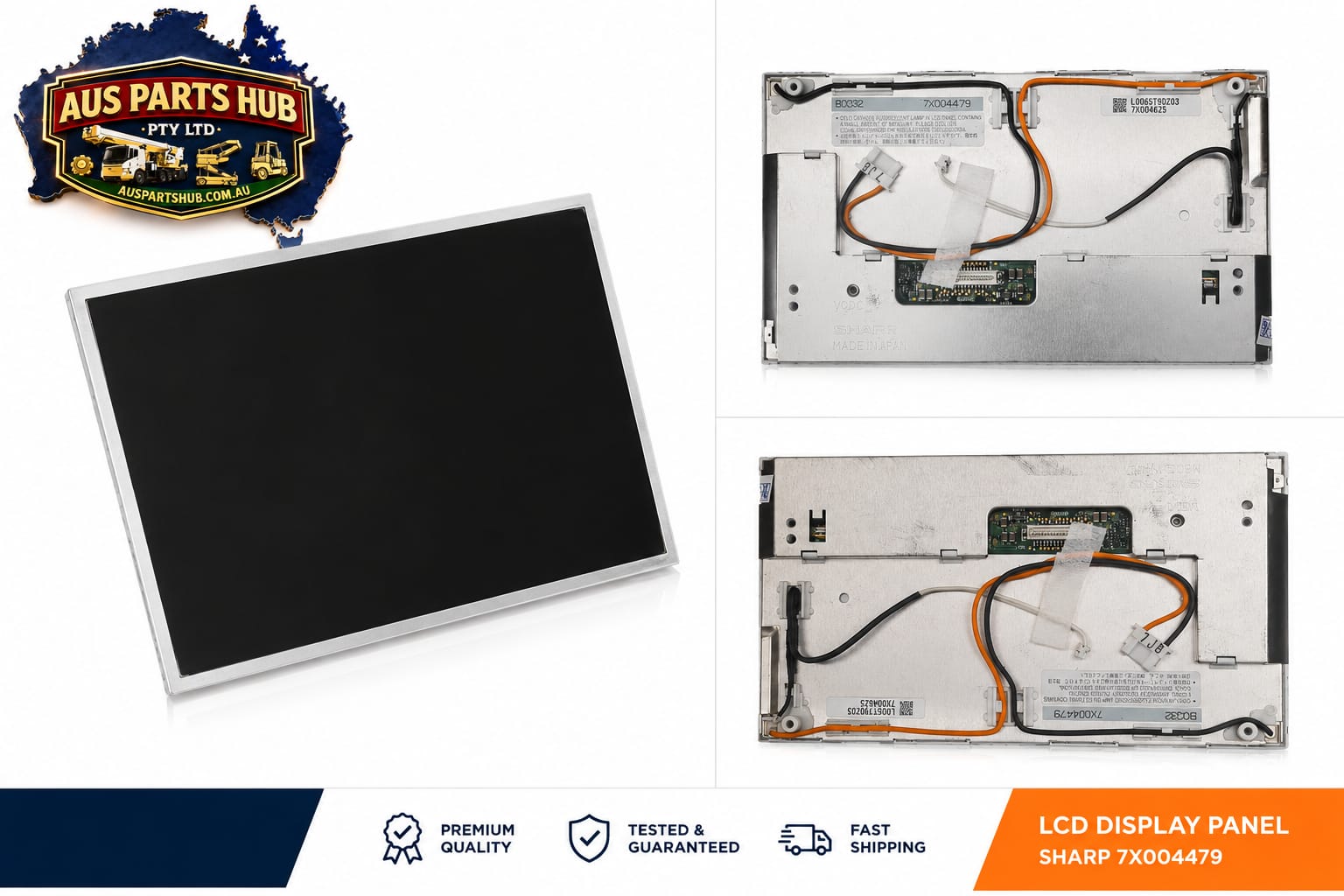

6.5" Inch LQ065T9DR51 LQ065T9DR51U LCD Screen Display For Sharp 1 Year Warranty
In Stock
(1 units available)
$250.00
*Including GST (Australia)
High-quality A-grade 6.5-inch color TFT-LCD module from SHARP, featuring amorphous silicon TFT active matrix technology. Designed specifically for automotive applications including car navigation systems, auxiliary information displays, and audio visual equipment. This wide-format (16:9) display offers 400×240 resolution with 262,144 colors and includes a self-heating backlight system for improved low-temperature performance. The module features wide viewing angle technology, low-reflection AG/AR surface treatment, and both transmissive and reflective operation modes. Complete with driver ICs, control/source PWB, gate PWB, shielding, and backlight unit.
Free shipping on orders over $500
30-day returns
High-quality A-grade 6.5-inch color TFT-LCD module from SHARP, featuring amorphous silicon TFT active matrix technology. Designed specifically for automotive applications including car navigation systems, auxiliary information displays, and audio visual equipment. This wide-format (16:9) display offers 400×240 resolution with 262,144 colors and includes a self-heating backlight system for improved low-temperature performance. The module features wide viewing angle technology, low-reflection AG/AR surface treatment, and both transmissive and reflective operation modes. Complete with driver ICs, control/source PWB, gate PWB, shielding, and backlight unit.
Product Specifications
| Mpn | LQ065T9DR51U |
|---|---|
| Model | 6.5" TFT-LCD Module |
| Ean | Does not apply |
| Condition | New |
| Type | TFT-LCD Display Module |
| Display Technology | Amorphous Silicon TFT Active Matrix |
| Screen Size | 6.5 inch (16.5 cm) |
| Aspect Ratio | 16:9 |
| Resolution | 400 × 240 pixels (96,000 pixels) |
| Dot Pitch | 0.1195 (W) × 0.3305 (H) mm |
| Active Area | 143.4 (W) × 79.326 (H) mm |
| Color Support | 262,144 colors (6-bit/color) |
| Viewing Angle | Wide viewing angle technology (6 o'clock direction) |
| Display Modes | Transmissive and Reflective |
| Application | Car Navigation, Automotive Infotainment, Automotive Audio Visual, Industrial Displays |
| Country Of Manufacture | Japan |
| Technical Specifications | Input Voltage V1: -0.3V to +3.6V Supply Voltage V S H: +4.5V to +5.5V (Typical: +5.0V) Supply Voltage V G H: +9.5V to +10.5V (Typical: +10.0V) Supply Voltage V G L: -9.5V to -10.5V (Typical: -10.0V) Current Dissipation I S H: 28mA (Typical) Current Dissipation I G H: 25mA (Typical) Current Dissipation I G L: -22mA (Typical) Clock Frequency: 25MHz (Maximum) Operating Temperature: -30°C to +85°C (Panel) Operating Temperature Ambient: -30°C to +65°C Storage Temperature: -30°C to +85°C Backlight Type: Single CCFT (Cold Cathode Fluorescent Tube) Lamp Voltage: 700Vrms (Typical) at 6.5mArms Lamp Current: 6.0 to 7.0mArms Lamp Frequency: 35-100kHz Luminance: 220 cd/m² (Typical) Contrast Ratio: 60 (Typical) Response Time Rise: 10ms (Typical) Response Time Fall: 25ms (Typical) Mass: 205g (Maximum) Outline Dimensions: 155 (W) × 89.2 (H) × 12.5 (D) mm |
| Features | Active matrix TFT technology for high contrast images, Wide 16:9 aspect ratio suitable for wide-screen systems, Both transmissive and reflective display modes, AG (Anti-Glare) and AR (Anti-Reflection) surface treatment, Self-heating backlight system for low-temperature performance, Vertical and horizontal inversion capability, Low reflection black matrix design, 400×240 high-resolution display with 262,144 colors, Automotive-grade temperature range, Compact design with integrated driver ICs, Edge-lighting backlight system with single CCFT, Thermistor for lamp temperature detection |
| Interface | Display Connector: DF9MA-31P-1V (Hirose Electric) Backlight Connector: BHR-04VS-1 (JST) Thermistor Connector: 203GT-1 (Ishizuka Electric) Input Signals: 18-bit RGB data (6-bit per color), Hsync, Vsync, Clock, ENAB, HVR |
| Pin Functions | V G H: +10V power supply V S H: +5V power supply V G L: -10V power supply E N A B: Horizontal display position control H V R: Horizontal/Vertical scanning direction control B0-B5: Blue data signals (LSB to MSB) G0-G5: Green data signals (LSB to MSB) R0-R5: Red data signals (LSB to MSB) Vsync: Vertical sync signal (Positive) Hsync: Horizontal sync signal (Positive) C K: Clock signal (25MHz max) |
| Reliability | Hightemperature Storage: +85°C for 240 hours Lowtemperature Storage: -30°C for 240 hours High Temperature Operating: +85°C for 240 hours Low Temperature Operating: -30°C for 240 hours High Humidity Operating: +50°C at 90% RH for 240 hours Shock Test: 980m/s², 6ms Vibration Test: 8-400Hz, 28.4m/s² Heat Shock Test: -30°C to +85°C, 200 cycles Electrostatic Discharge: ±200V, 200pF |
| Certifications | RoHS Compliant, Automotive Qualified |
| Warranty | 12 months |
